Before you begin

You will need:
  • A PlanetScale account with access to the database you want to replicate
  • Permission to create database passwords in the PlanetScale console

​
Setup

1

Create a database password

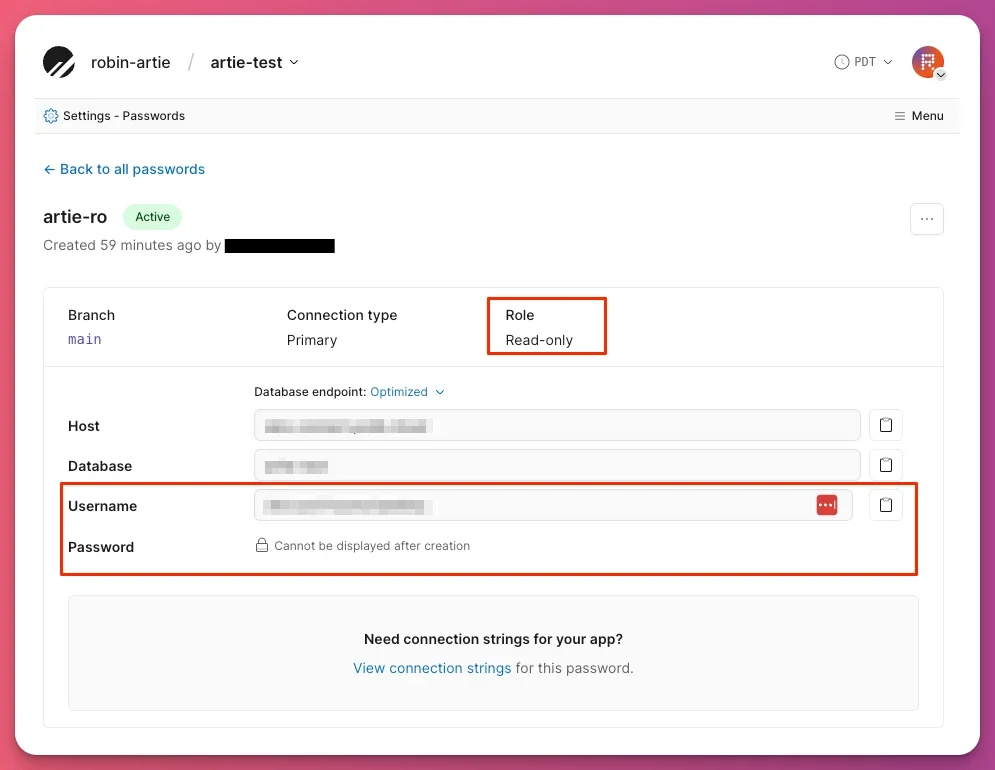

In the PlanetScale console, go to your database and select Settings → Passwords → New password.Set the Role to Read-only. This is the least-privilege role needed — it grants SELECT access for snapshot backfills and VStream CDC access for ongoing replication.PlanetScale New Password screen with the Role field set to Read-onlyAfter saving, copy the Host, Username, and Password values shown. You will need these in the next step.
2

Add PlanetScale as a source in Artie

In the Artie dashboard, create a new pipeline and select PlanetScale as the source. Enter the credentials from the previous step:
FieldValue
HostShown on the PlanetScale password page (e.g. aws.connect.psdb.cloud)
Port3306
UsernameShown on the PlanetScale password page
PasswordShown on the PlanetScale password page
DatabaseYour PlanetScale database name (this is also your branch name)
TLS is enforced automatically — no additional configuration is needed.

​
Frequently asked questions

​
Does Artie use MySQL binlog for PlanetScale?

No. Artie uses the Vitess VStream gRPC API for PlanetScale CDC, not MySQL binary log replication. You do not need to configure binlog_format, set binlog retention, or grant REPLICATION CLIENT or REPLICATION SLAVE privileges.

​
What role does the database password need?

Read-only is sufficient for both snapshot backfills and ongoing CDC. Do not use Read/Write or Admin roles.

​
Is GTID required?

No. VStream-based CDC does not use GTID.

​
Are read replicas supported?

No. PlanetScale handles read routing internally — no replica configuration is needed on the Artie side.

​
What MySQL version does PlanetScale expose?

PlanetScale exposes a MySQL 8.0-compatible interface via the Vitess layer.

​
Advanced

PlanetScale CDC uses the Vitess VStream gRPC API rather than MySQL binary log replication. VStream is a change stream protocol built into Vitess that surfaces row-level changes without requiring direct binlog access.This means Artie does not need replication privileges, binlog configuration, or GTID — all of which are required for standard MySQL CDC. TLS is always enforced on PlanetScale connections; Artie sets this automatically.
