DynamoDB

Required settings

DynamoDB Streams ARN (view type must be set to NEW_IMAGE or NEW_AND_OLD_IMAGES)
DynamoDB Table must have point-in-time recovery enabled if you want the table backfilled
Service account

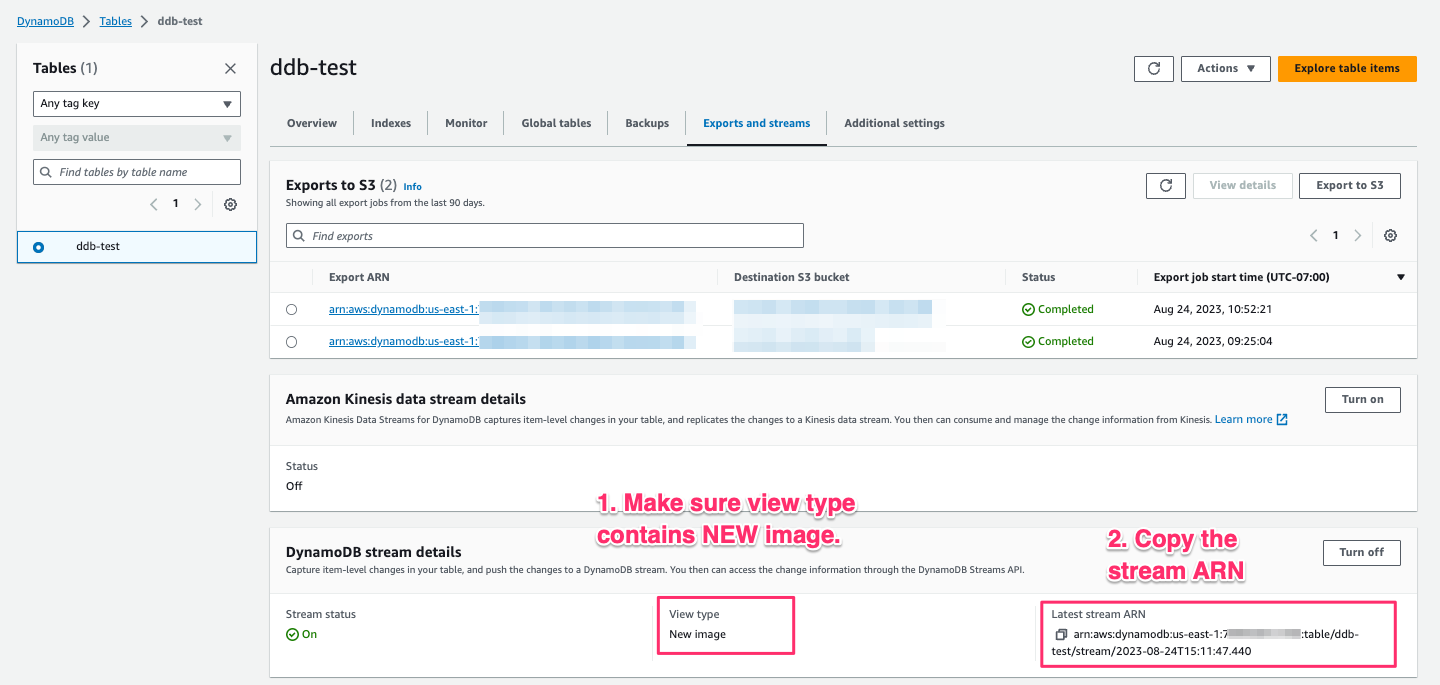

Finding DynamoDB Streams ARN

Creating a service account (Terraform)

provider "aws" {
  region = "us-east-1"
}

resource "aws_iam_role" "dynamodb_streams_role" {
  name = "DynamoDBStreamsRole"

  assume_role_policy = jsonencode({
    Version   = "2012-10-17",
    Statement = [
      {
        Action = "sts:AssumeRole",
        Principal = {
          Service = "ec2.amazonaws.com"
        },
        Effect = "Allow",
        Sid    = ""
      }
    ]
  })
}

resource "aws_iam_policy" "dynamodb_streams_access" {
  name        = "DynamoDBStreamsAccess"
  description = "My policy that grants access to DynamoDB streams"

  policy = jsonencode({
    Version   = "2012-10-17",
    Statement = [
      {
        Effect = "Allow",
        Action = [
          "dynamodb:GetShardIterator",
          "dynamodb:DescribeStream",
          "dynamodb:GetRecords",
          "dynamodb:ListStreams",

          // We'll need this to check if the table has PITR enabled
          "dynamodb:DescribeContinuousBackups",

          // Required for export
          "dynamodb:DescribeTable",
          "dynamodb:ListExports",
          "dynamodb:DescribeExport",
          "dynamodb:ExportTableToPointInTime"
        ],
        // Don't want to use "*"? You can specify like this:
        // Resource = [ TABLE_ARN, TABLE_ARN + "/stream/*" ]
        Resource = "*" # Modify this to restrict access to specific streams or resources
      },
      // Export (snapshot) requires access to S3
      {
        "Effect" : "Allow",
        "Action" : [
          "s3:ListBucket"
        ],
        "Resource" : "arn:aws:s3:::artie-transfer-test"
      },
      {
        "Effect" : "Allow",
        "Action" : [
          "s3:GetObject",
          // Required for export
          "s3:PutObject",
          "s3:GetBucketLocation"
        ],
        "Resource" : "arn:aws:s3:::artie-transfer-test/*"
      }
    ]
  })
}

resource "aws_iam_role_policy_attachment" "dynamodb_streams_role_policy_attachment" {
  role       = aws_iam_role.dynamodb_streams_role.name
  policy_arn = aws_iam_policy.dynamodb_streams_access.arn
}

output "service_role_arn" {
  value = aws_iam_role.dynamodb_streams_role.arn
}

resource "aws_iam_user" "dynamodb_streams_user" {
  name = "dynamodb-artie-user"
  path = "/"
}

resource "aws_iam_user_policy_attachment" "user_dynamodb_streams_attachment" {
  user       = aws_iam_user.dynamodb_streams_user.name
  policy_arn = aws_iam_policy.dynamodb_streams_access.arn
}

resource "aws_iam_access_key" "dynamodb_streams_user_key" {
  user = aws_iam_user.dynamodb_streams_user.name
}

output "aws_access_key_id" {
  value     = aws_iam_access_key.dynamodb_streams_user_key.id
  sensitive = true
}

output "aws_secret_access_key" {
  value     = aws_iam_access_key.dynamodb_streams_user_key.secret
  sensitive = true
}

Backfills

In order to backfill data from a DynamoDB table, we will perform a data export to S3 and then import the data into the target table.

This is more favorable as it does not consume read capacity units (RCUs) from the source table, and you will only need to pay for data transfer costs (which are a fraction of RCUs).
